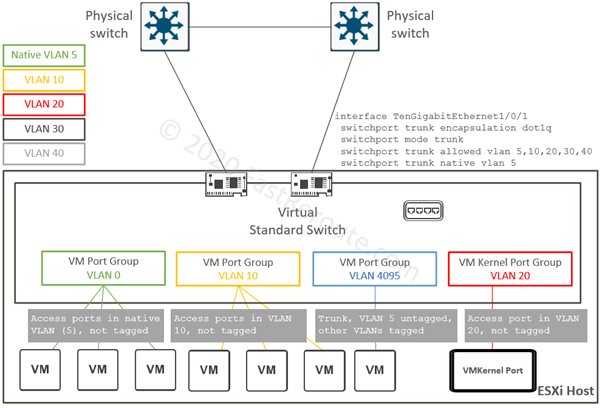

Standard VMware Networking

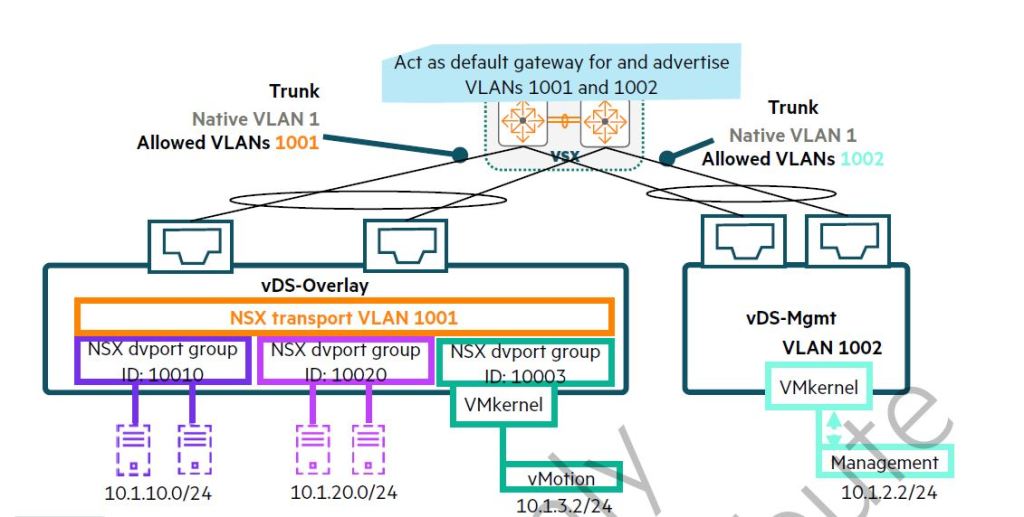

VMware NSX (software-defined networking)
How is it configured ?

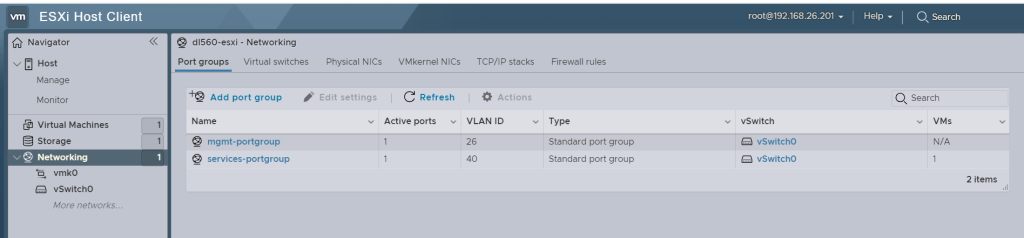

Create Port Groups, It contains the VLAN ID.
vSwitch

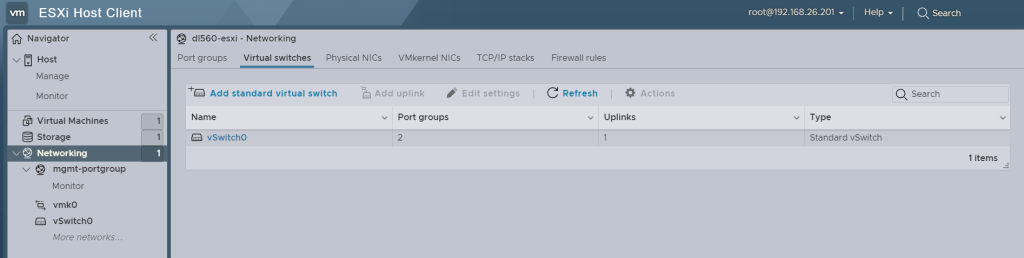

Virtual Switch is a logical switch that connects port groups/vms and physical nic.

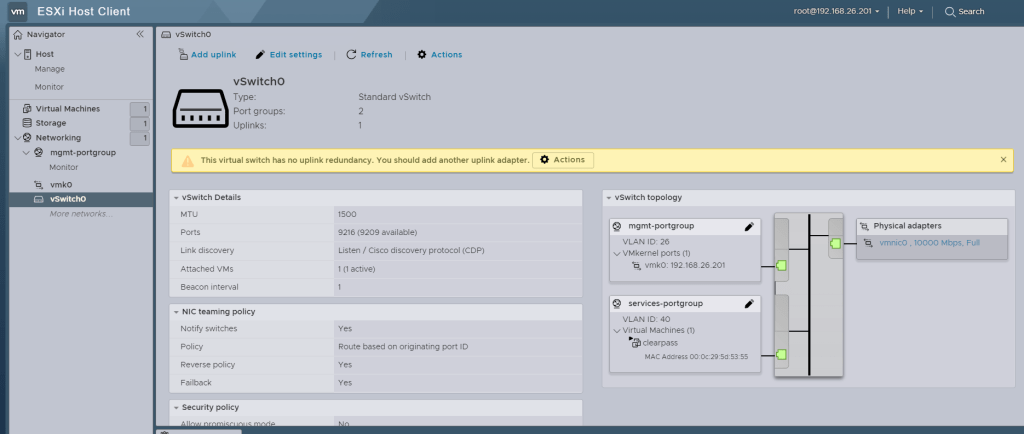

Below is the vSwitch0 topology. It is mapped to the physical NIC and VMs.

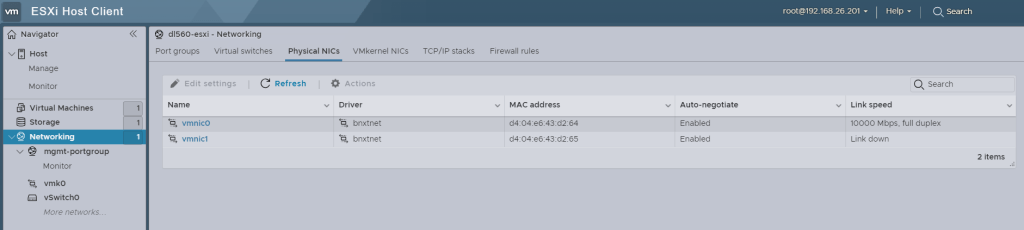

Physical NIC – vmnic0

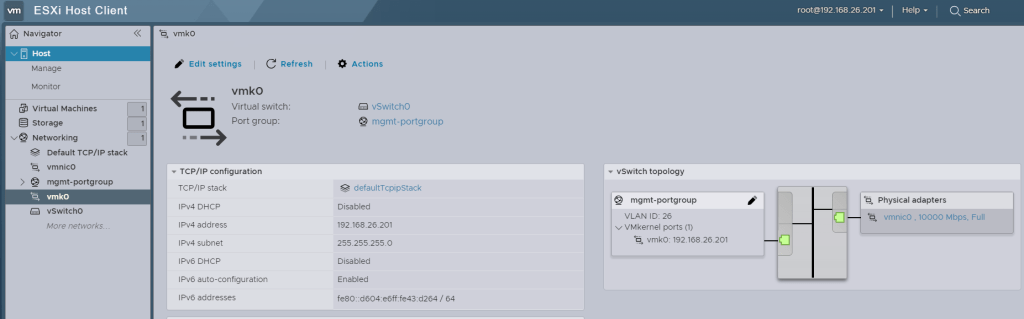

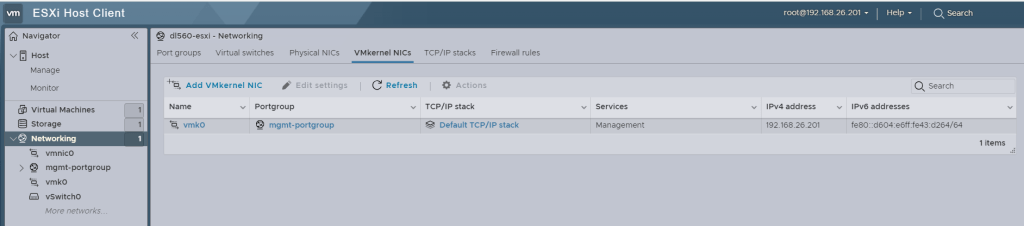

VMKernel NIC – VMkernel NIC(vmk0) is the IP interface which is used for management connectivity
Switch Configuration:
vmnic0 is connected to Switch Port 1/1/25.

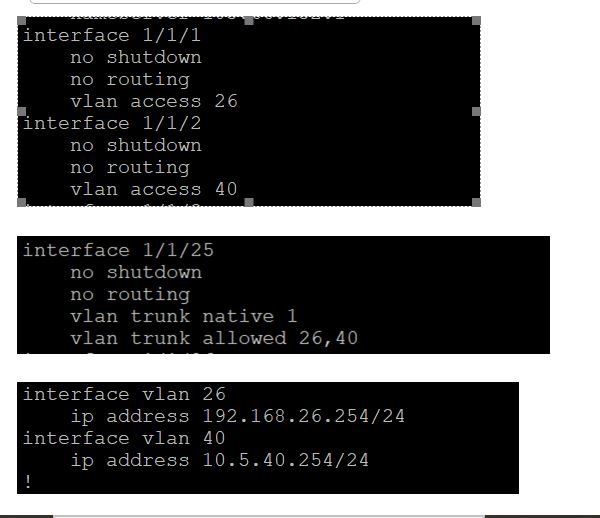

I have configured IP address on VLAN 26 and 40, so that it acts as default gateway to vm services and management.
Switch port 1/1/1 is assigned to VLAN 26, so that I can reach the vm management using 1/1/1 interface.
Switch port 1/1/2 is assigned to VLAN 40, so that I can reach the vm services using 1/1/2 interface.
